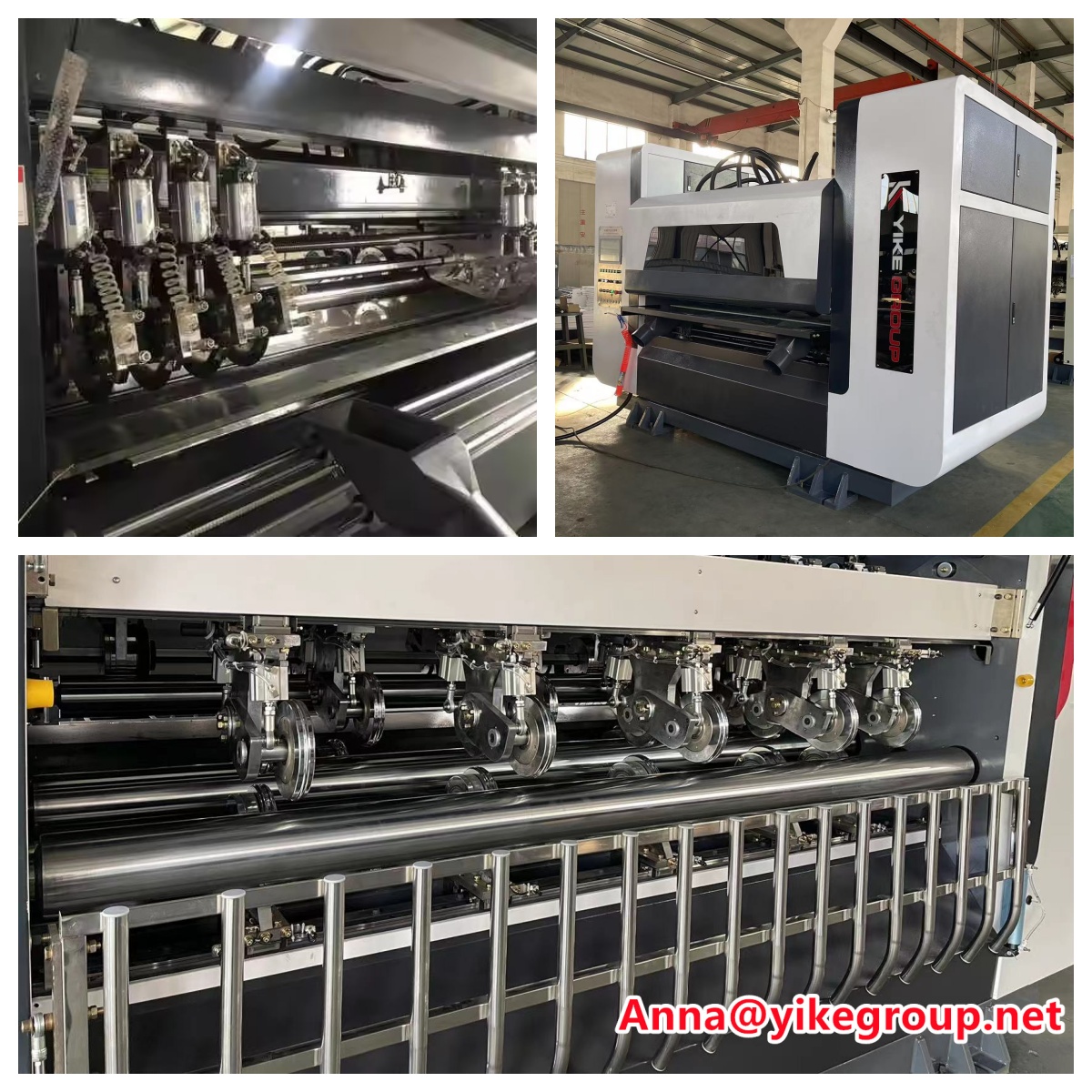

Yk-1800ENC Full Automatic Corrugation Thin Blade Slitting Scoring Machine From YIKE GROUP

Name: Yk1800ENC Full Automatic Corrugation Thin Blade Slitting Scoring Machine From YIKE GROUP
Brand: YIKE GROUP
Price: 80000 USD

Buy cheap Yk-1800ENC Full Automatic Corrugation Thin Blade Slitting Scoring Machine From YIKE GROUP product

Brand Name : YIKE GROUP

Model Number : YK-2000

Certification : CE, ISO

Place of Origin : China

MOQ : 1 Set

Price : USD80000

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 Sets per Month

Delivery Time : 60 days after deposit

Packaging Details : Plastic Film

Name : C Servo Type Slitter Scorer

Voltage : 220V/380V,Customer's Demand

Type : Thin blade slitter scorer

Order change : 1S

Min.slitting : 135mm

Application : Machinery & Hardware

precision : ±0.5mm

Warranty : 1 year and long life technical support

Function : Corrugated cardboard production line

Keywords : Thin Blade Slitter Scorer Machine

Condition : New Slitter Machine

Contact Now

Yk-1800 ENC Full Automatic Corrugation Thin Blade Slitting Scoring Machine From YIKE GROUP

Yk-1800ENC Full Automatic Corrugation Thin Blade Slitting Scoring Machine From YIKE GROUP

Technical Specifications of Servo Type Slitter Scorer Machihne

width	1800mm		2200mm	2500mm
speed	150,200,250m/min
Blade&scorer	5&8,6&10,7&12
Order change	1s
precision	±0.5mm
Min.slitting	135mm
Min.scorer	0mm
Correction range	200mm
power	25kw	30kw		35kw
machine size	390018002450 (mm)	430018002450(mm)		450018002450(mm)

Yk-1800ENC Full Automatic Corrugation Thin Blade Slitting Scoring Machine From YIKE GROUP

Function and Characteristic:

 High quality touch screen and PLC equipped composing the CNC system,connect

to the production line.

 High quality beeline rail guarantees the precision.

 memory of orders,realize non-stop automatic or manual change.

 Speed synchronizes with board speed.Standard communication interface,easy to

link with management system.

 Alloyed steel thin-blades,sharp and long life of over 8 million meters,auto

sharpening

 The knife for computer control automatic or manual knife sharpening,edge

trimming knife,improve production efficiency.

 Three types of scorers:convex to concave,convex to flat.

 Two rows of scorers,realizes minimum scorer spacing is 0mm.

 Computer control score-depth,high quality scorer,more steady .

 Using the synchronous belt transmission ,low noise,prolong using time.

 Standard motorized body left-right rectification system 200mm

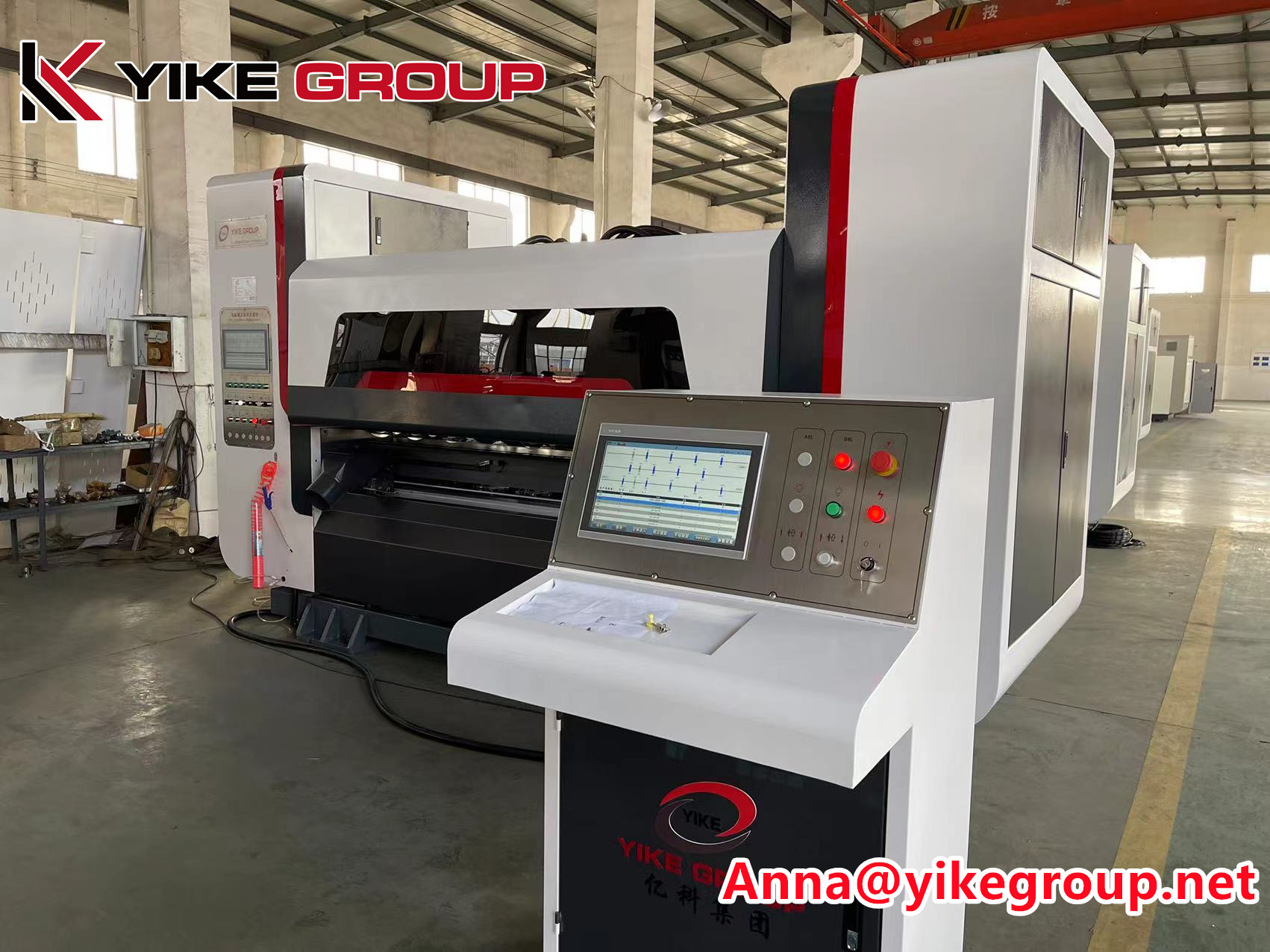

Yk-1800ENC Full Automatic Corrugation Thin Blade Slitting Scoring Machine From YIKE GROUP

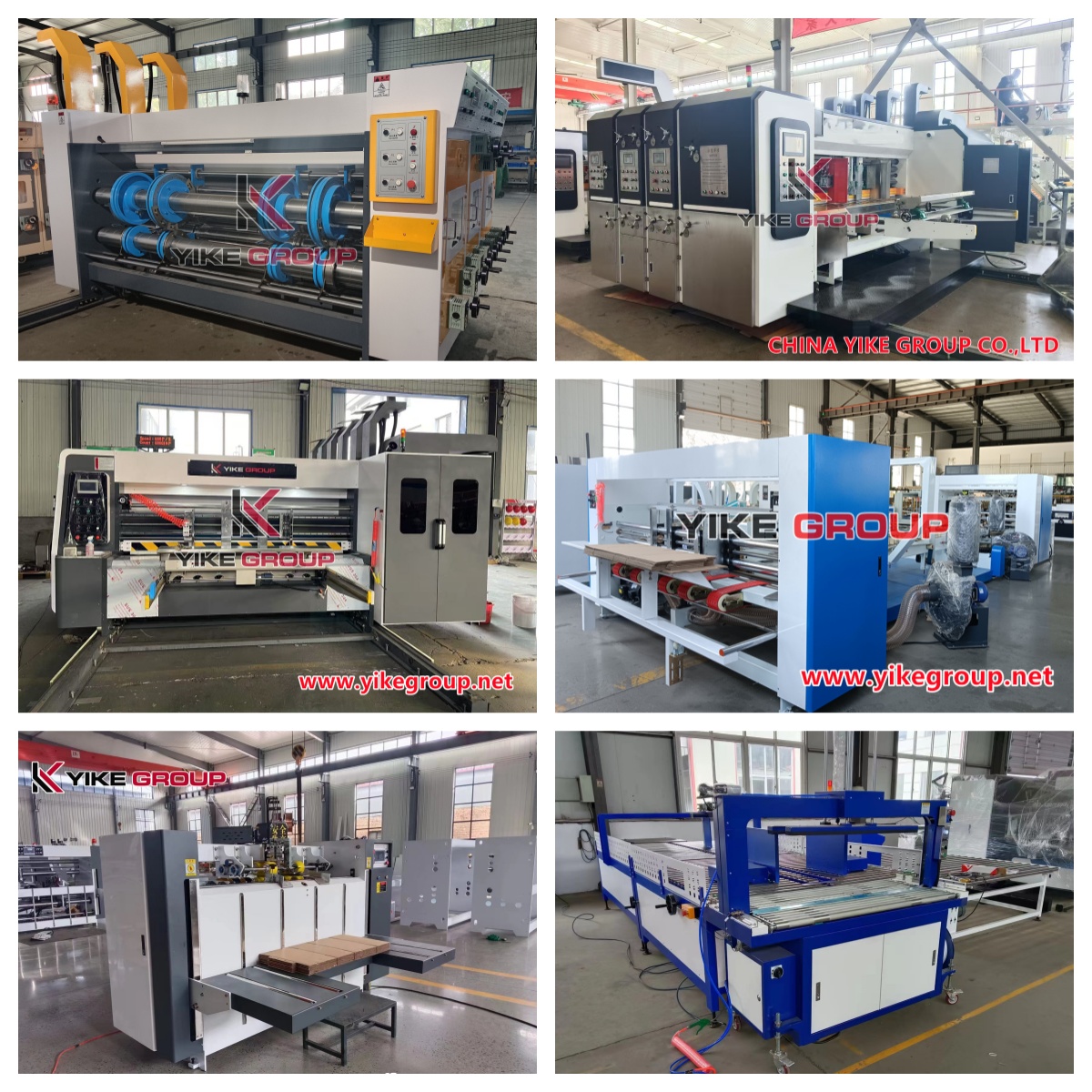

Other type corrugated carton box making machine from YIKE GROUP
