YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine

Name: YIKE GROUP 1600180022002500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine
Brand: YIKE GROUP
Price: 6800 USD

Buy cheap YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine product

Brand Name : YIKE GROUP

Model Number : YK-2200

Certification : ISO CE

Place of Origin : China

MOQ : 1

Price : USD 6800/set

Payment Terms : D/A, L/C, D/P, T/T

Supply Ability : 1000set/month

Delivery Time : 20 working days

Packaging Details : Plastic Packaging

Contact Now

YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine

STRUSTURAL FEATURE:

1.Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.

2.brake adjustable adopts multipoint braking system.

3.every stand matched two sets paper car , and they can paper on the both sides at the same time.

YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine

Technical parameters:

The range of clamping paper:MAX2200mm MIN1000mm
clamping diameters:MAX￠1500mm MIN￠350mm
main shaft diameter of paper holder:￠240mm
gas source work pressure(Mpa):0.4---0.8Mpa
equipment size:Lmx4.3*Wmx1.8*Hmx1.6
single weight:MAX 4000Kg

YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine

Hydraulic system parameters:

Work pressure(Mpa):16---18Mpa
lifting hydraulic cylinder:￠100×440mm
Clamping hydraulic cylinder:￠63×1300m
hydraulic station motor power:3KW --380V -- 50Hz
solenoid valve voltage:220V 50 Hz

YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine

Mainly purchased parts, raw materials and origin

Name of main parts	Brands or place of origin	material
Main shaft	Day steel production	diameter242mm
Swing arm	Production by own	Resin sand gray ironHT200
wallboard	Jigang prduction	Q235AWelding parts
bearing	HRB,ZWZ,LYC
expand chuck	Zhejiang xusheng	3,4inch shared
Main electrical appliance	France Schneider
button	CHINT NP2series
Air switch	French Schneider
Pneumatic components	Zhejiang Sonor CSM
Hydraulic station	Shandong zaozhuang
Brake pump	zhejiang

YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine

More details if you need pls add me

whatsapp +008613363699514

Anna@yikegroup.net

YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine

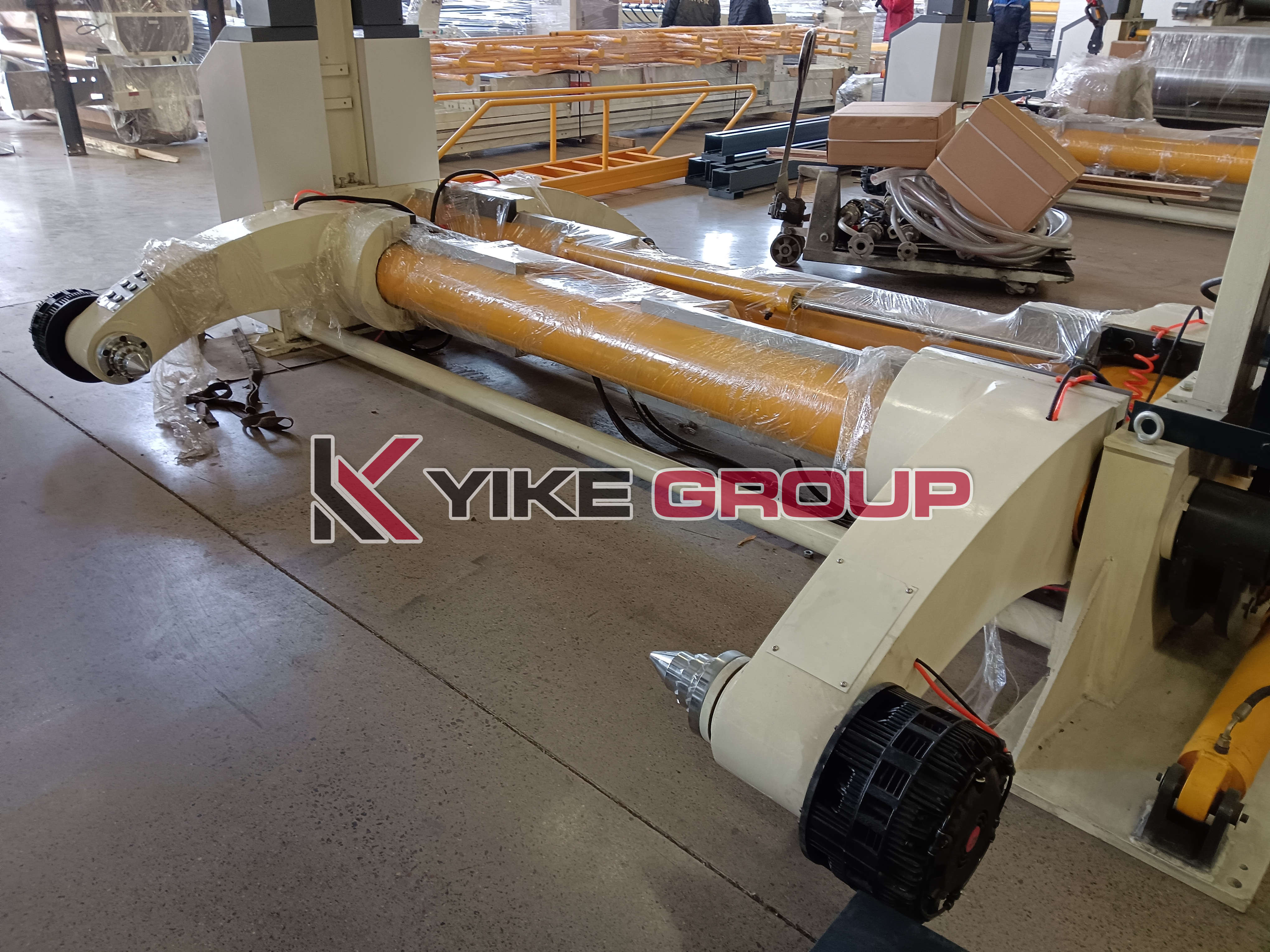

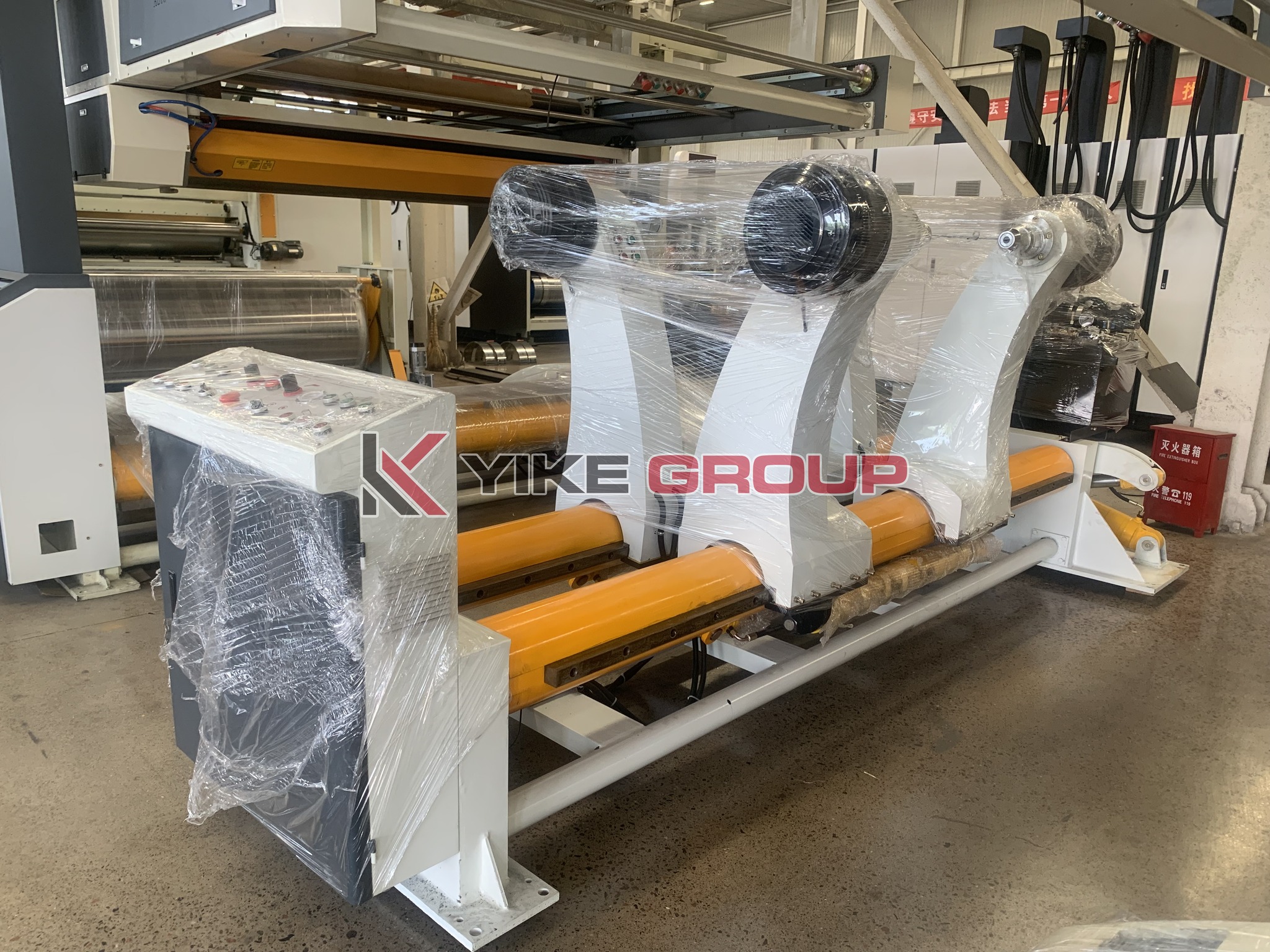

YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine Images
